All RTU5015 orders from Nov.1st, 2015 NEW Version will start to support the new functions:
Customized SMS command to ON ,OFF, or temporary On or Off the relay output !
Intelligent search function of storage number !

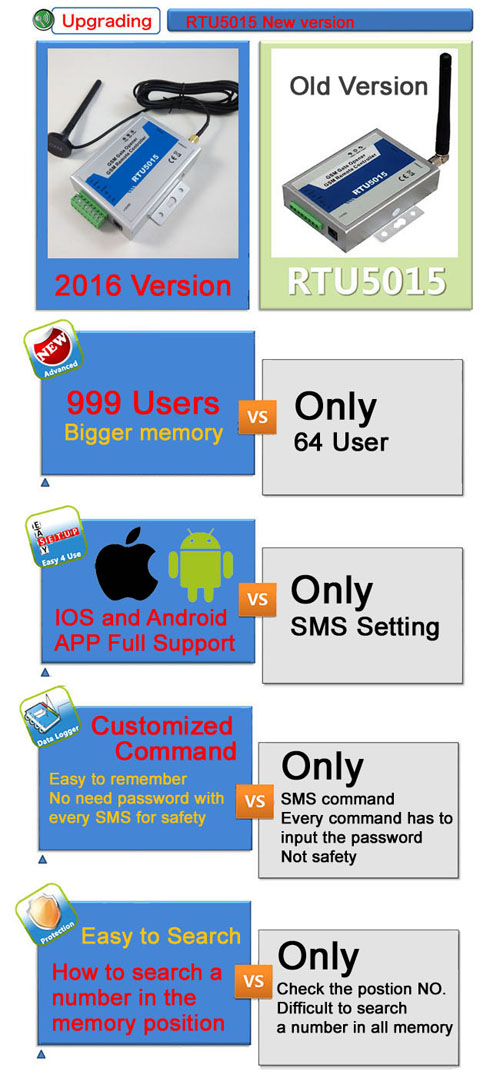

New version 2016 was supported by Android and new version 2016 was supply by both IOS and android APP and more features supported better ! We keep to upgrate our device more and more better.

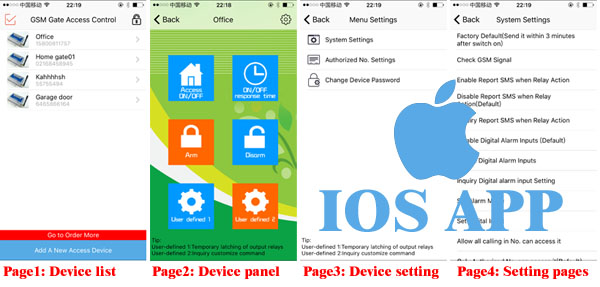

1. For IOS app,please go to Apple APP store and search the keyword " RTU5015 "
or use this link to find the RTU5015 app link: https://itunes.apple.com/us/app/rtu5015/id1100111938?l=zh&ls=1&mt=8
2. For Android app,please download : Android app link

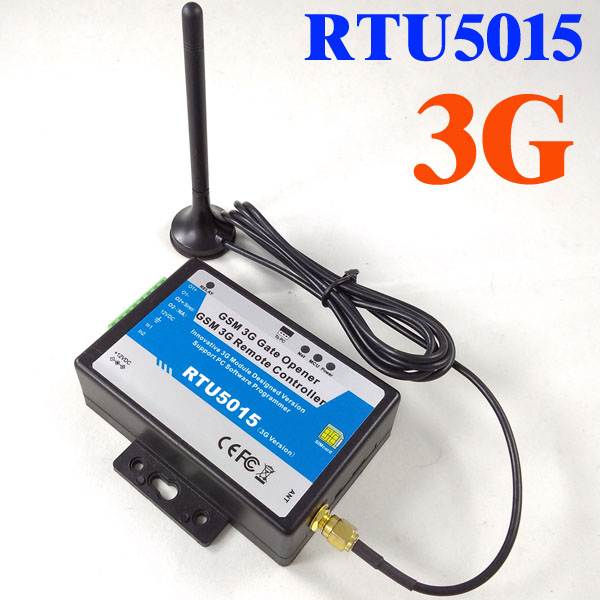

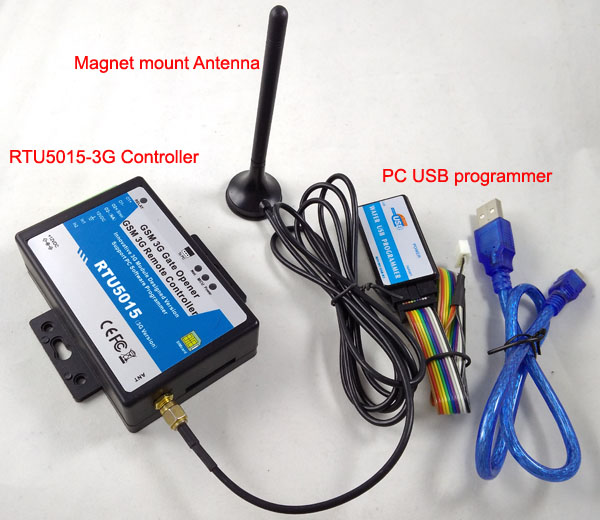

2018 Version RTU5015 3G version Frequency UMTS:
RTU5015-3G E Version:
RTU5015-3G A Version:
RTU5015-3G T Version:
Have the questions on the RTU5015 products ?
Need to download more files of RTU5015 Serial products?
Main features of RTU5015:
1. No call charges. the GSM Gate Opener rejects the call from authorized number then carrys out the turn ON/OFF action on the first 'ring';
2. Multiple applications. (gates, bollards, barriers, garage doors, shutters and access doors or machines);
3. Secure - Using caller ID for identification,unknown callers are ignored;
4. Can be operated from anywhere, no distance limit;
5. Add or remove users by Simple SMS Text command;
6. Up to 99 authorized phone numbers can be configured;
7. Two Digital inputs for door sensor, motion sensors or other sensors to protect your door and windows, when any one of them triggered, will send SMS alert message you immediately;
8. One output with relay rating 3A/240VAC for connecting the switch of the door or machines;
9. The relay action will return a SMS confirmation to the owner, this function is editable by user;
Specifications of the RTU5015:
DC Power supply:DC12V/2A
Power consumption:12V input (50mA)
Frequency range:Dual band 900/1800 MHz or 850/1900Mhz
SIM Card:Supporting 3V SIM Card
Antenna:50 Ω SMA Antenna interface
Temperature range:-20-+60 °C
Humidity range:Relative humidity 90% (condensation free)
Net Weight:600 g

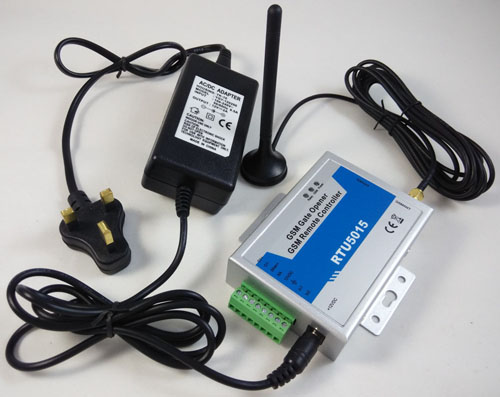

Standard Package list of RTU5015:
GSM Gate Opener (RTU5015) X 1
GSM Antenna X 1
AC to DC Adaptor X1 (12VDC/2A)
User Manual X 1
GSM RTU5015 Files
